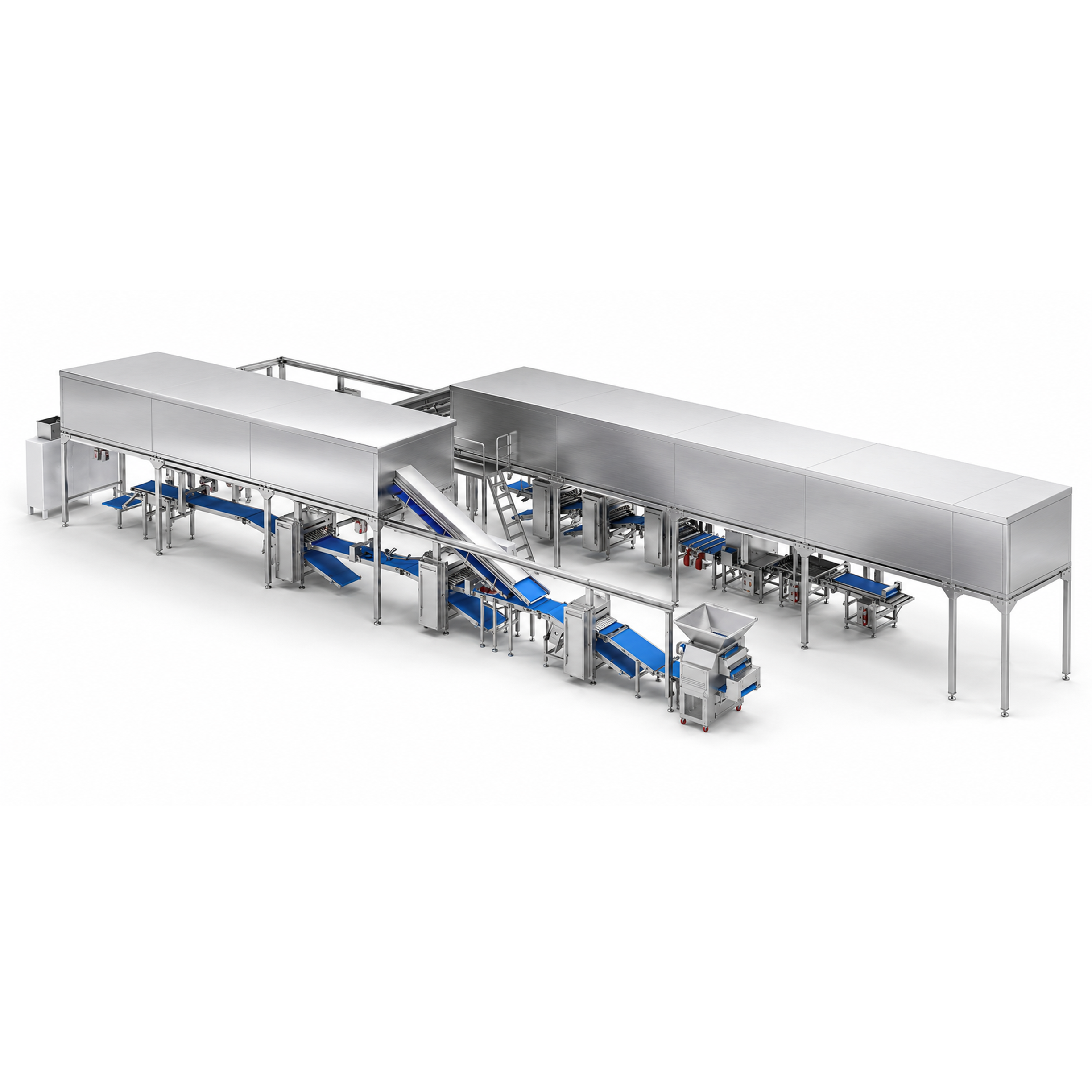

Fully Automatic Tart Stick Production Line
Specification
| Model | BAGPL-800 Fully Automatic Tart Stick Production Line |
| Motors | Germany SEW Motor + Japan Shanteng Motor + Taiwan Shihlin Servo Motor |
| Bearings | Germany FAG maintenance-free ball bearings; Sweden SKF; FAG spherical roller bearings with sealed covers (dust-proof & water-proof) |
| Inverter (VFD) | Denmark Danfoss Variable Frequency Drive |
| Control System | Japan Mitsubishi PLC + HMI Touch Screen + Schneider Low-voltage Control Unit |
| Floor Load & Footprint | Floor load: >650 kg/m²; Total weight: approx. 28 tons; Footprint: L32m × W10m × H4.5m (dimensions subject to final drawings) |
| Total Power | Approx. 141 kW, 380V, 50Hz, 3-phase 5-wire |
| Capacity | 2 tons/hr |
Fully Automatic Tart Shell Production Line

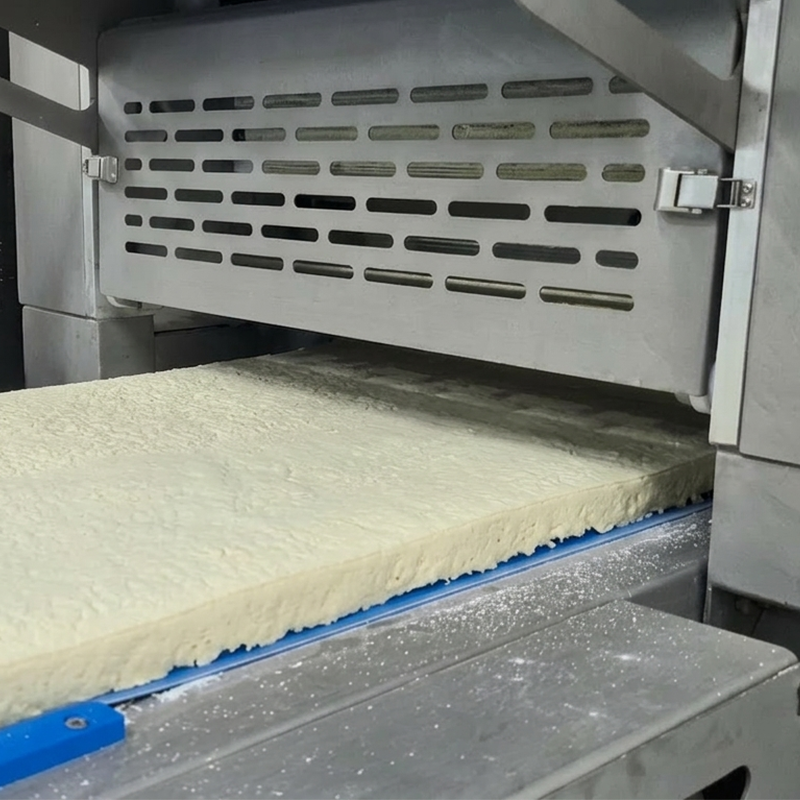

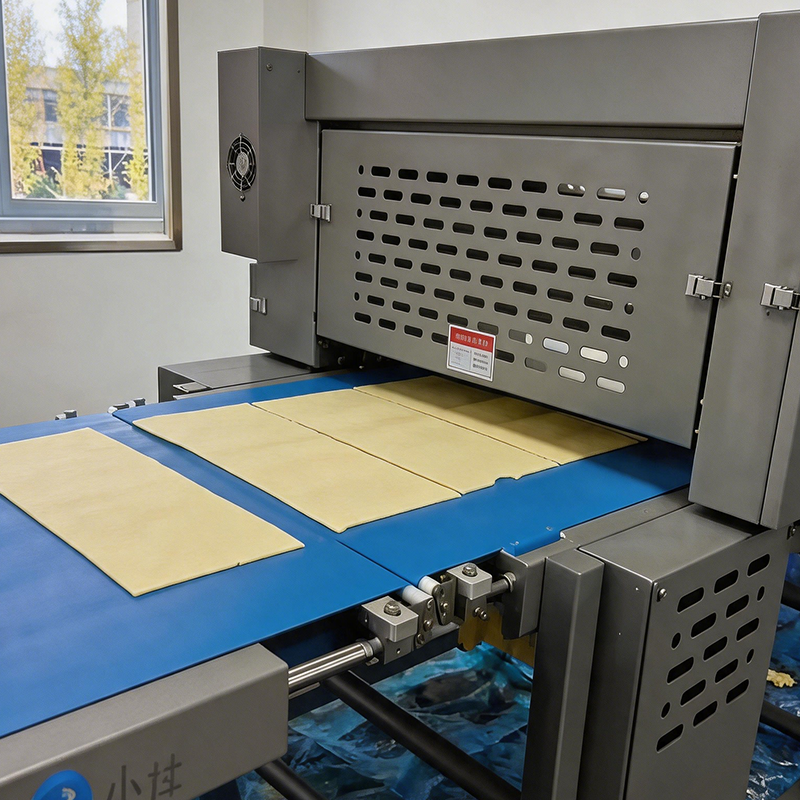

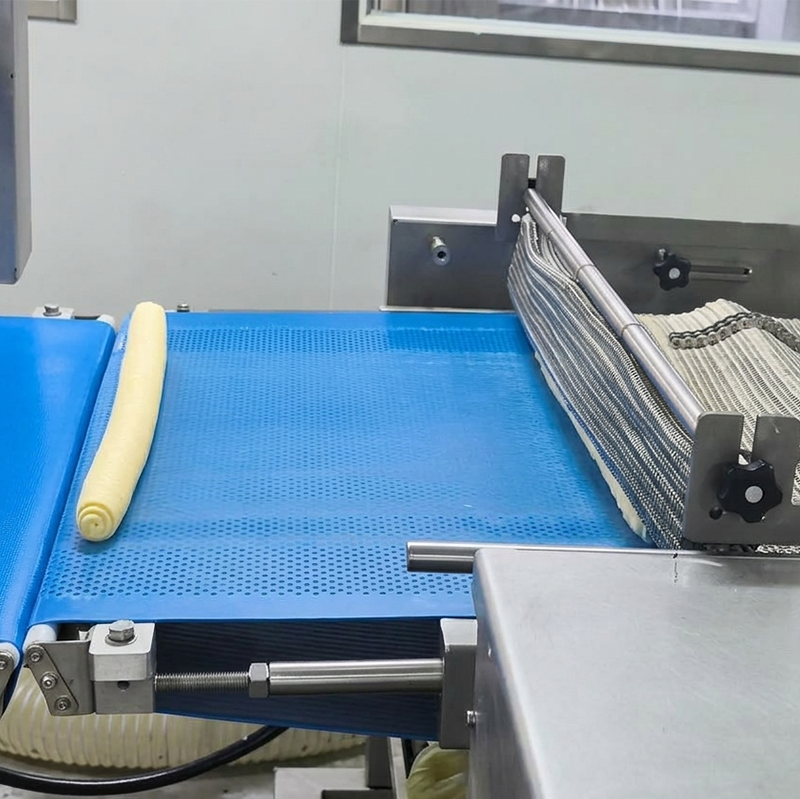

The BAGPL-800 is a large-scale continuous tart stick production line that integrates Dough Resting → Dough Slapping → Multi-roller Sheeting → Counter-roller Pressing → Flour Dusting → Stick Forming → Cutting → Auto Panning. Powered by Germany SEW, Japan Shanteng, and Taiwan Shihlin servo motors, the line features Germany FAG maintenance-free ball bearings, Sweden SKF, and FAG dust-proof & water-proof spherical roller bearings. Combined with Denmark Danfoss VFDs and a Japan Mitsubishi PLC + HMI + Schneider low-voltage control system, it ensures outstanding stability and precision under heavy-duty, continuous operation.
With a capacity of 2 tons/hr, total power of approx. 141 kW (380V / 50Hz / 3-phase 5-wire), and a footprint of 32 m × 10 m × 4.5 m, the line requires a floor load of >650 kg/m² and weighs approx. 28 tons. From dough conditioning to finished product panning, the entire process is fully automated—making it the ideal turnkey solution for industrial-scale tart stick manufacturing.
Provide related services
Technical support: We have a professional technical team to provide customers with remote technical support at any time to help solve problems in equipment operation, maintenance and troubleshooting.
On-site service: If necessary, we can arrange technicians to go to the customer's site for equipment installation and commissioning, maintenance and training services to ensure the normal operation of the equipment.
Spare parts supply: We provide original spare parts and related accessories supply services to ensure that customers can quickly obtain suitable parts during equipment maintenance and minimize equipment downtime.
