Forming Equipment

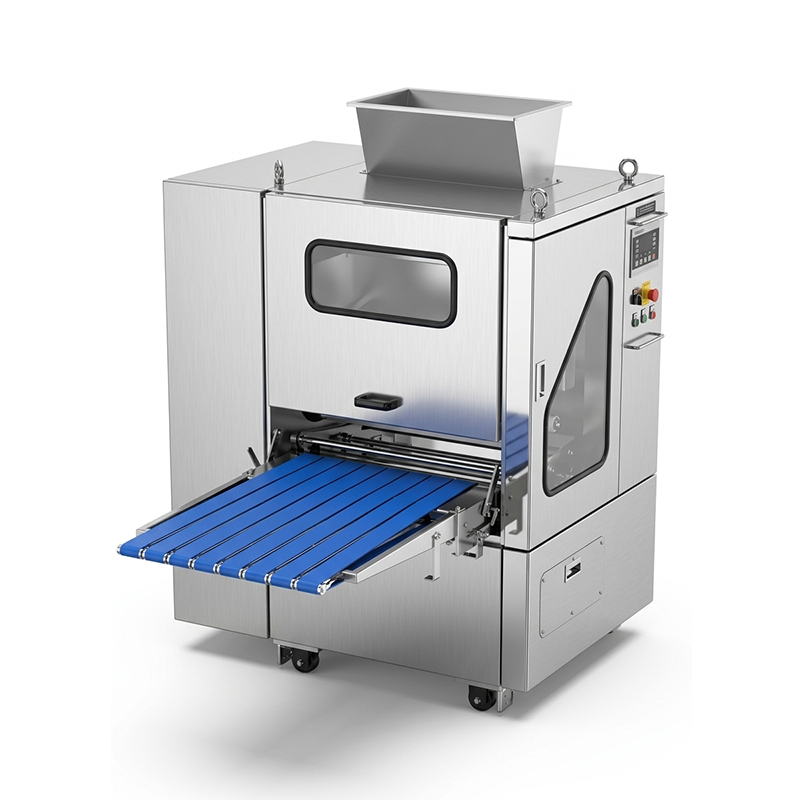

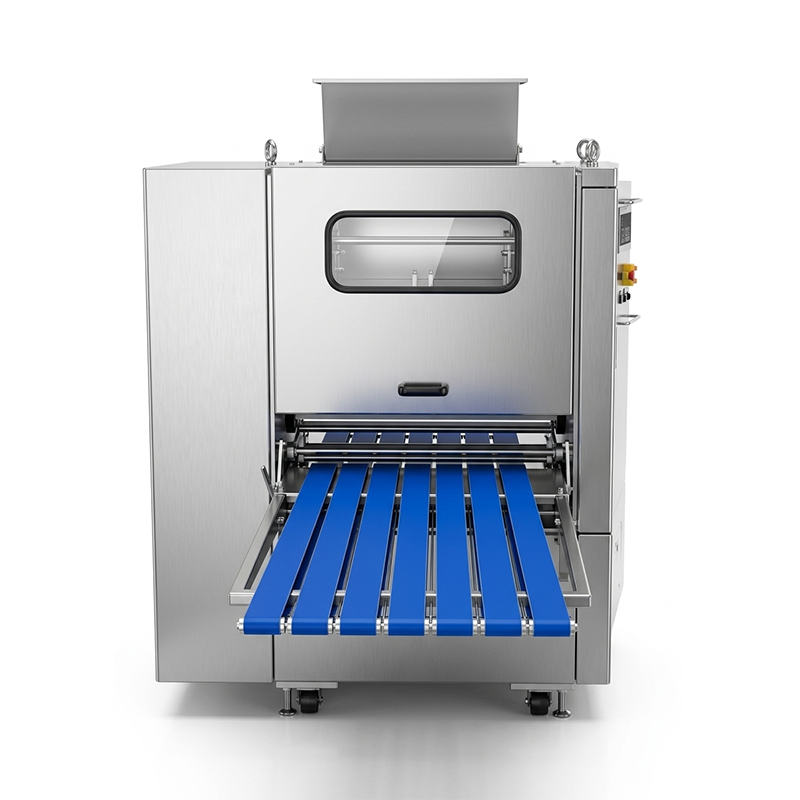

Fully Automatic Dough Divider & Rounder
Specification
| Parameter | SMD-6P | SMD-12P | |
| Model | SMD-6P | SMD-12P | |
| Dividing & Rounding Tracks | 6 | 12 | |
| Max. Capacity | 12000 pcs/h | 24000 pcs/h | |
| Dividing & Rounding Range | Drum 1 | 30-50g, [12-20g customized] | 20-40g, [12-20g customized] |
| Drum 2 | 50-75g | 30-50g | |
| Drum 3 | 80-100g | — | |
| Drum 4 | 100-120g | — | |
| Power | 4.5 KW | 4.5 KW | |
| Overall Dimensions (L×W×H mm) | 2000 × 1100 × 1630 | 2000 × 1100 × 1630 | |
| Voltage | 3-Phase 380V | 3-Phase 380V | |
| Remarks | One rounding drum is standard; other drums are optional. | One rounding drum is standard; other drums are optional. | |
Features
- 1.Delivers precise dough portioning and excellent rounding performance. Dough weight and size can be easily adjusted to meet different production requirements.
- 2.Both the dividing and rounding speeds are controlled by variable frequency drives (VFDs), ensuring smooth operation and flexible speed adjustment.
- 3.The hydraulic system is equipped with an imported pressure relief valve for accurate pressure control and stable performance.
- 4.An emergency stop button is provided to immediately stop the machine in case of an emergency, ensuring the safety of both operators and equipment
Fully Automatic Dough Divider & Rounder

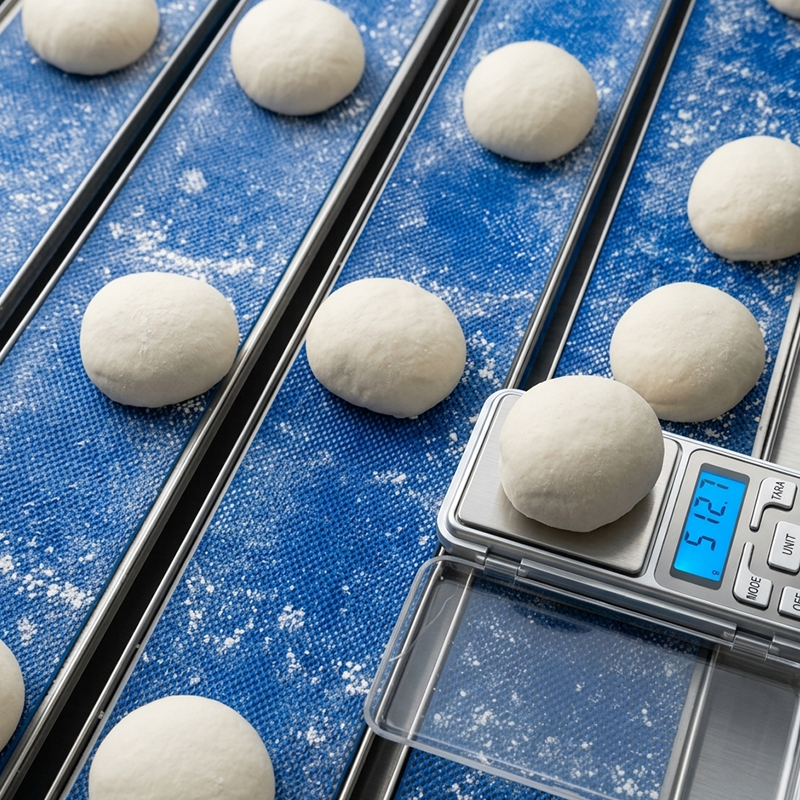

- Processes dough pieces ranging from 30–130 g (customizable) with a weight accuracy of ±1–2 g. Dough weight can be adjusted directly via the touchscreen.
- Features a 20 kg SUS304 stainless steel hopper and a food-grade SUS304 stainless steel machine body for durability and hygiene.
- Ideal for high-volume production of frozen dough, hamburger buns, sweet buns, dinner rolls, and a wide variety of bakery products.
- Controlled by a Siemens PLC with a 7-inch touchscreen HMI. The cutting mechanism is driven by a stepper motor, while sensors and electrical components are sourced from internationally recognized brands, including Delta, Shihlin Electric, NSK bearings (Japan), and other premium suppliers.
- The imported hydraulic system precisely controls the pressure applied to the dough, ensuring stable operation and consistent dough weight.

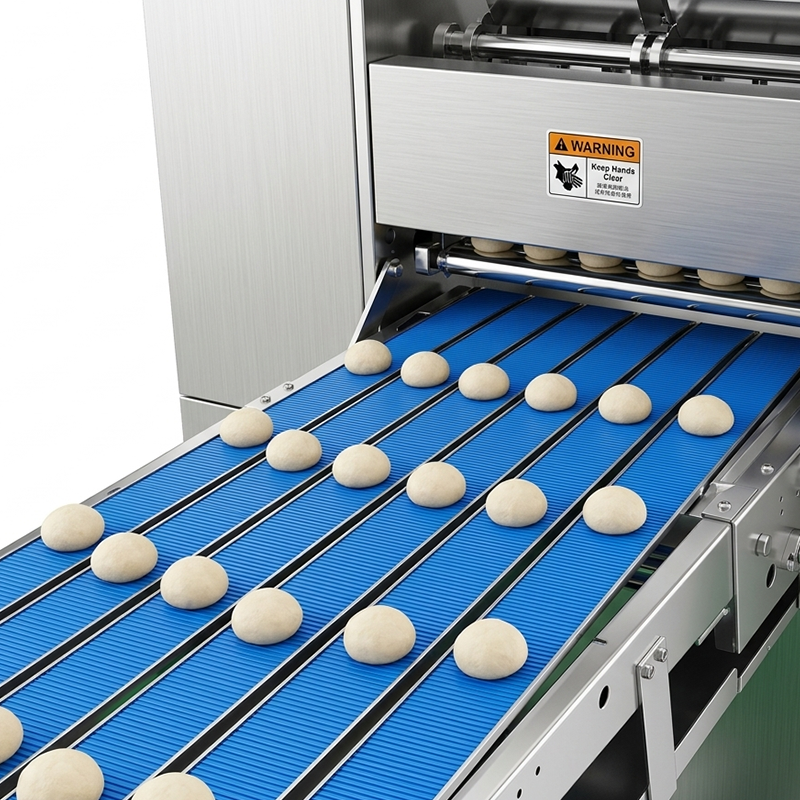

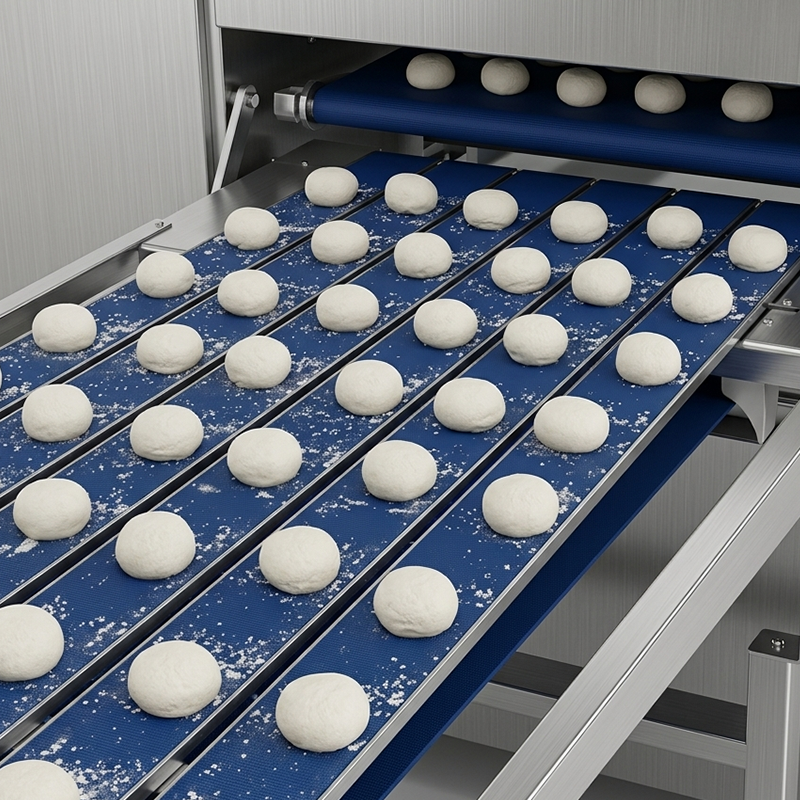

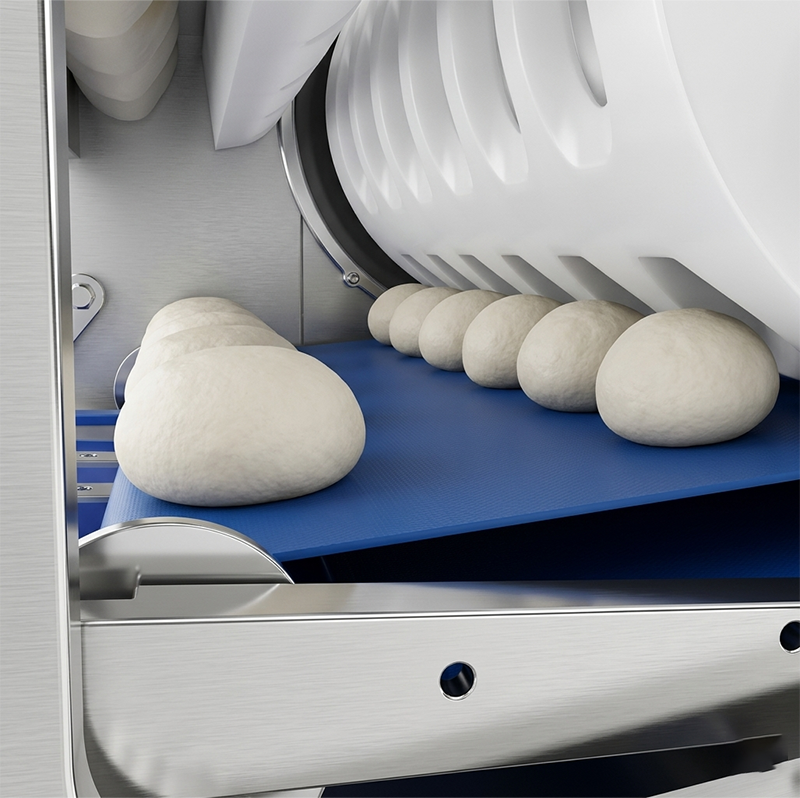

- Equipped with a premium PU elastic rounding belt, providing superior rounding performance and extended service life.
- The drive system features a Xinling motor and a WANXIN gear reducer, ensuring reliable power transmission and long-term operational stability.
Provide related services
Technical support: We have a professional technical team to provide customers with remote technical support at any time to help solve problems in equipment operation, maintenance and troubleshooting.
On-site service: If necessary, we can arrange technicians to go to the customer's site for equipment installation and commissioning, maintenance and training services to ensure the normal operation of the equipment.
Spare parts supply: We provide original spare parts and related accessories supply services to ensure that customers can quickly obtain suitable parts during equipment maintenance and minimize equipment downtime.
