Industrial Automatic Line

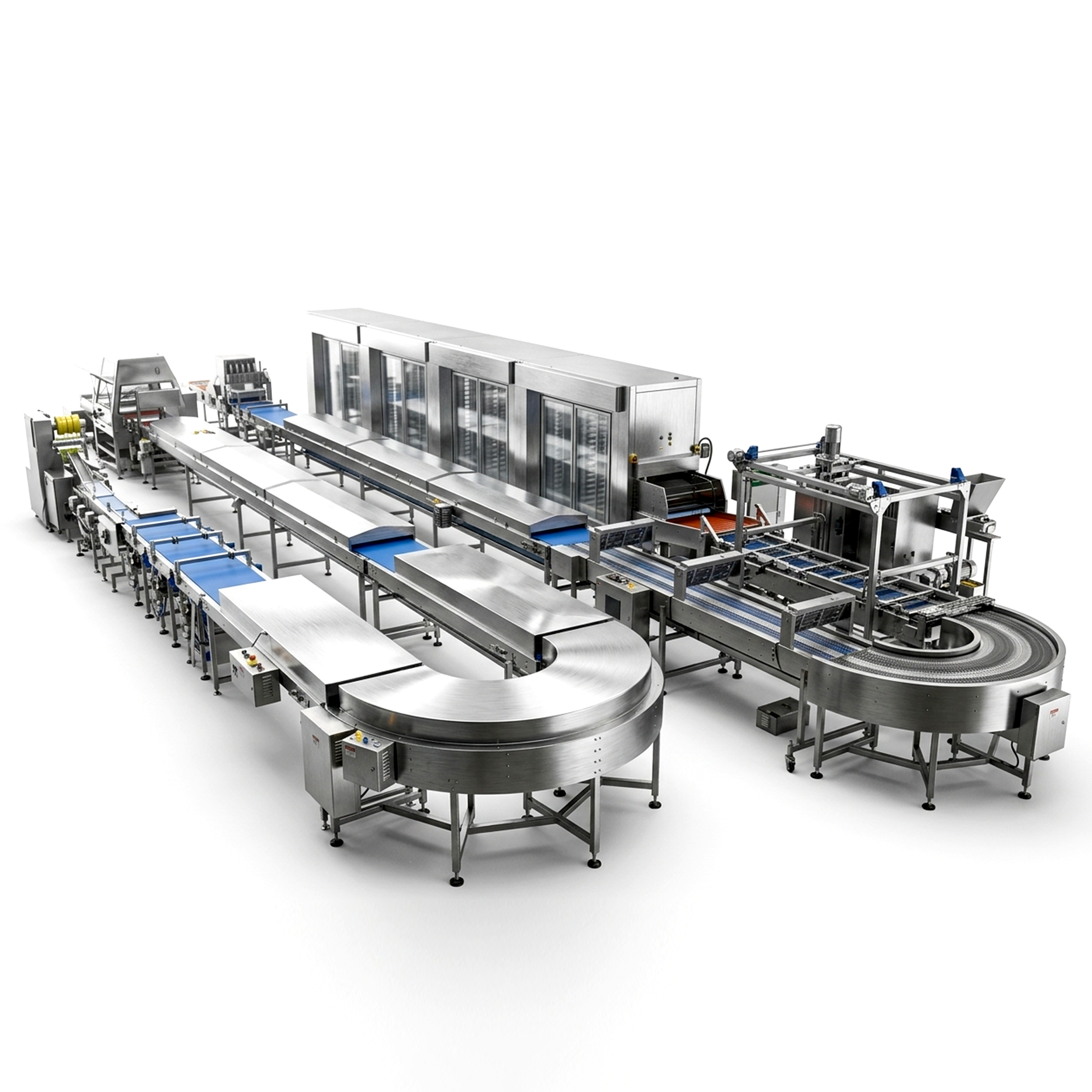

DPL Series Automatic Yeast Donut Production Line-1
Specification
| Model No. | DPL-4800 | DPL-7200 | DPL-9600 | |||
| Power | Electrical | Gas | Electrical | Gas | Electrical | Gas |
| 80kW | 44kW | 102kW | 57kW | 130kW | 70kW | |
| Voltage and Frequency | 3PH, 380V, 50Hz | 3PH, 380V, 50Hz | 3PH, 380V, 50Hz | 3PH, 380V, 50Hz | 3PH, 380V, 50Hz | 3PH, 380V, 50Hz |
| Zones of Proofer | 4 zones | 4 zones | 6 zones | 6 zones | 8 zones | 8 zones |
| Basic proofing time | 40 mins | 40 mins | 40 mins | 40 mins | 40 mins | 40 mins |
| Capacity | 4500-4800 pcs/h | 4500-4800 pcs/h | 6800-7200 pcs/h | 6800-7200 pcs/h | 9000-9600 pcs/h | 9000-9600 pcs/h |
| Type of Gas | Natural Gas/Oil Gas | Natural Gas/Oil Gas | Natural Gas/Oil Gas | Natural Gas/Oil Gas | Natural Gas/Oil Gas | Natural Gas/Oil Gas |

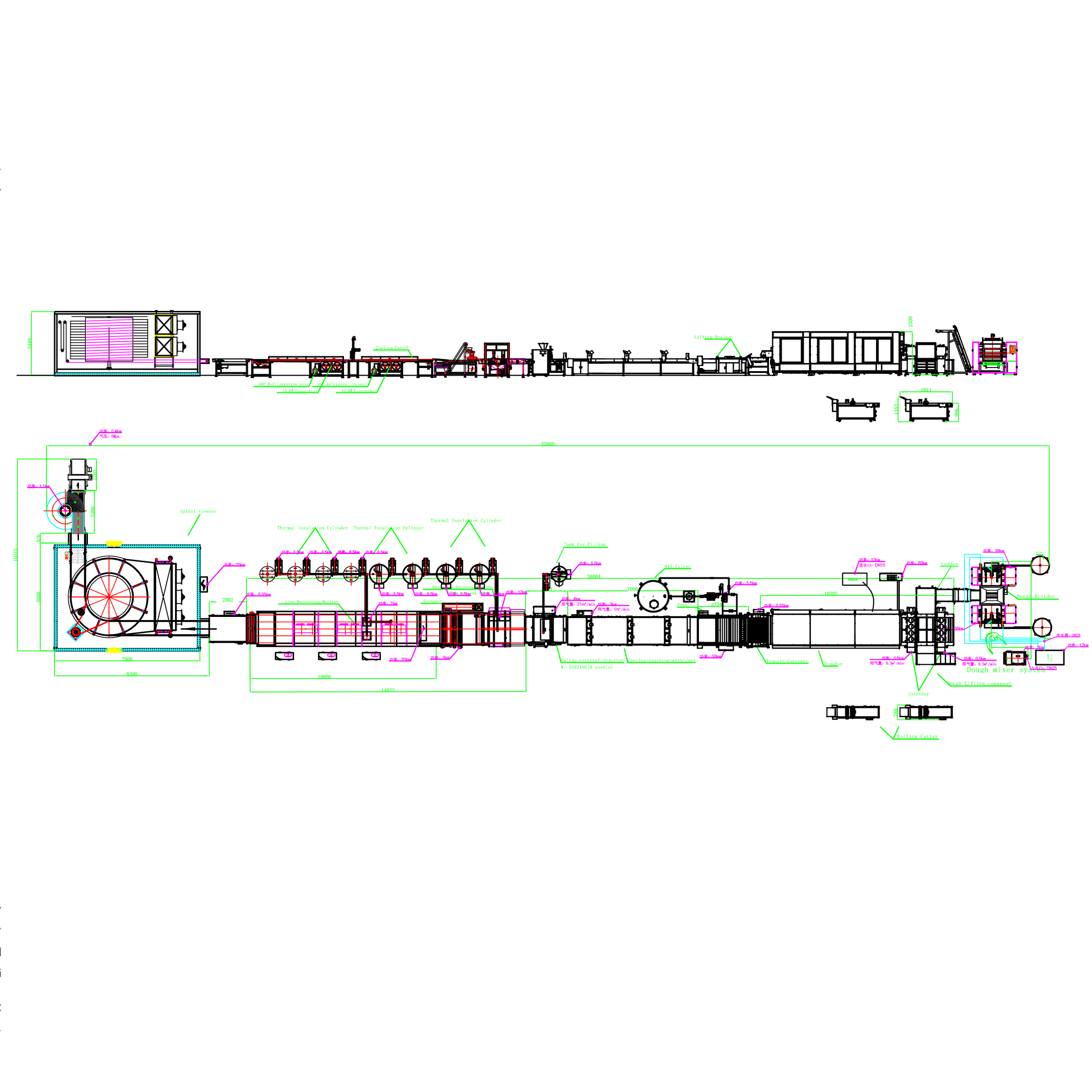

| Dimension(L*W*H) | 18757*1800*2595mm | 18757*1800*2595mm | 23965*1800*2595mm | 23965*1800*2595mm | 29145*1800*2595mm | 29145*1800*2595mm |
| Name | DPL-4800 (Gas) | DPL-7200 (Gas) | DPL-9600 (Gas) |
| Fryer | 2900*847*188mm | 4040*847*188mm | 5200*847*188mm |
| Proofer | 10685*1800*2595mm | 14725*1800*2595mm | 18765*1800*2595mm |
| Glazer | 1800*1320*1160mm | 1800*1320*1160mm | 1800*1320*1160mm |
| Cooling Conveyor | 1800*932*945mm | 1800*932*945mm | 1800*932*945mm |

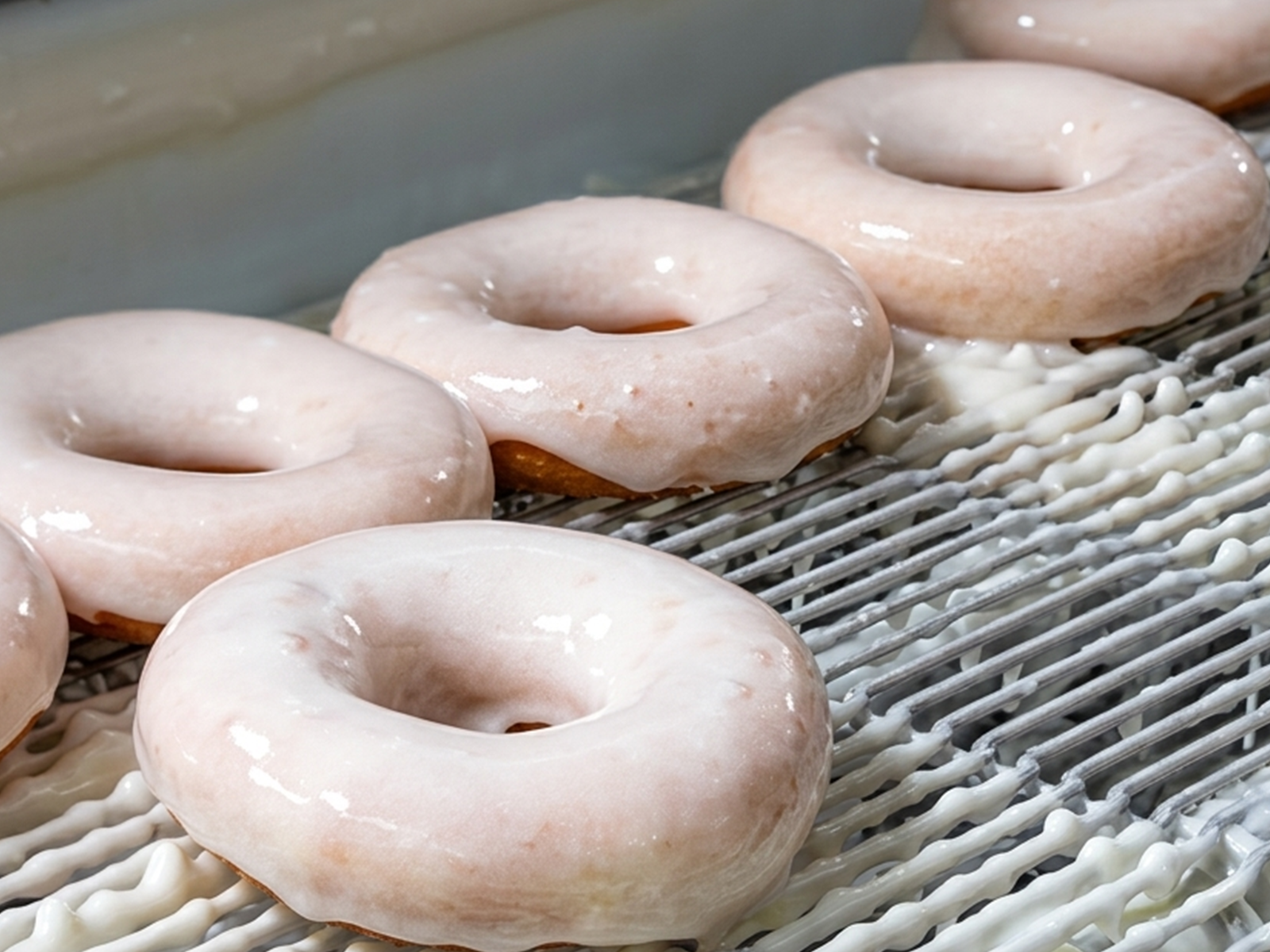

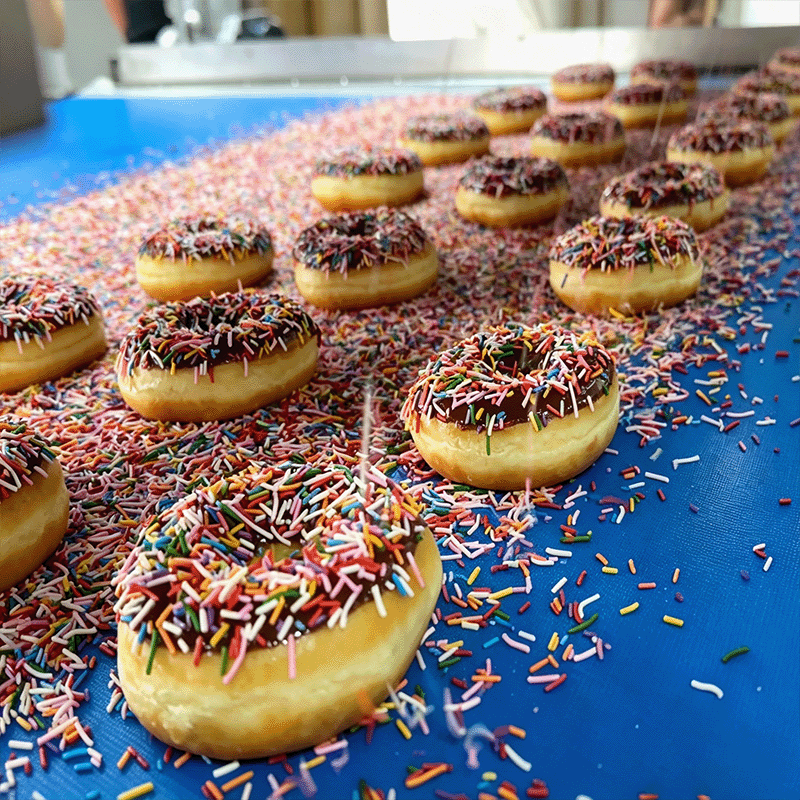

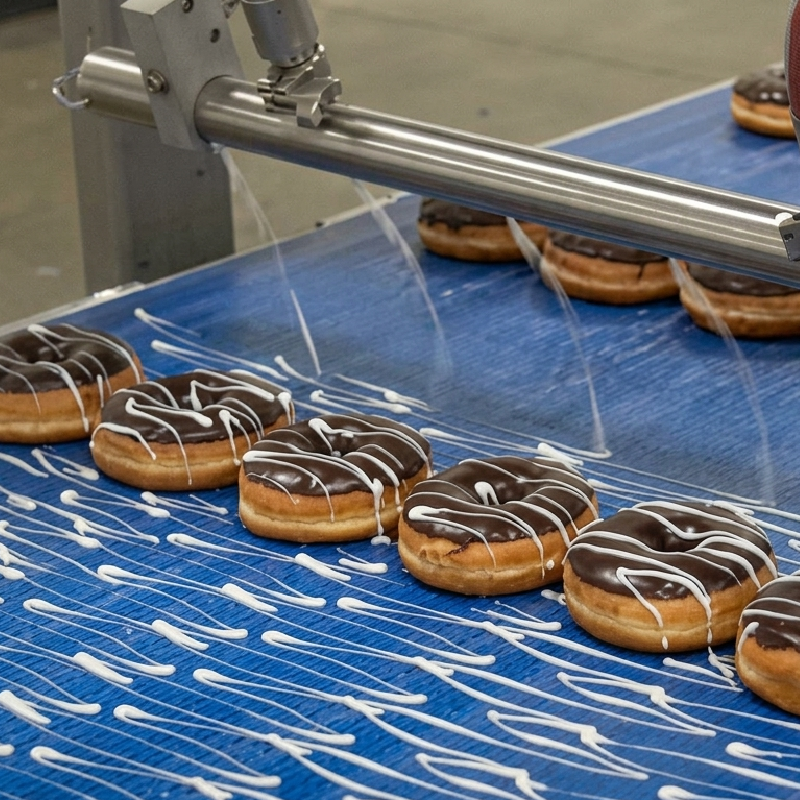

Make-up and Forming(Cutting-Proofing-Injection-Glazing-Dectorating)

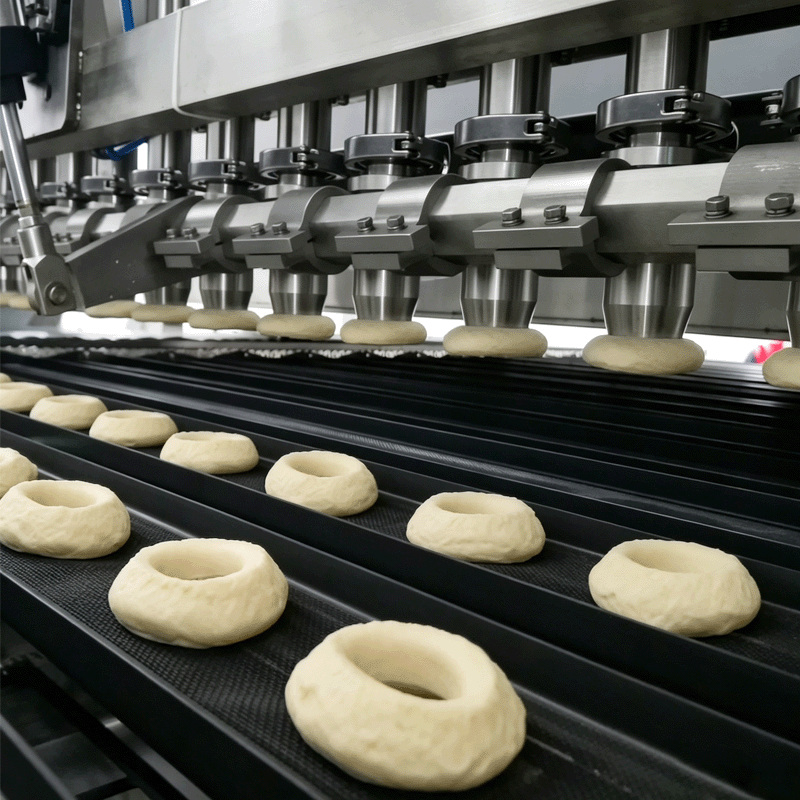

Cutting: The extruder makes pressure-cut raised donuts efficiently.The Ring Cutter is for cutting donuts with hole;the Shell Cutter is for cutting donuts without hole.Adjustments can be made to the required donuts weights and sizes by changing the program and pressure, etc.

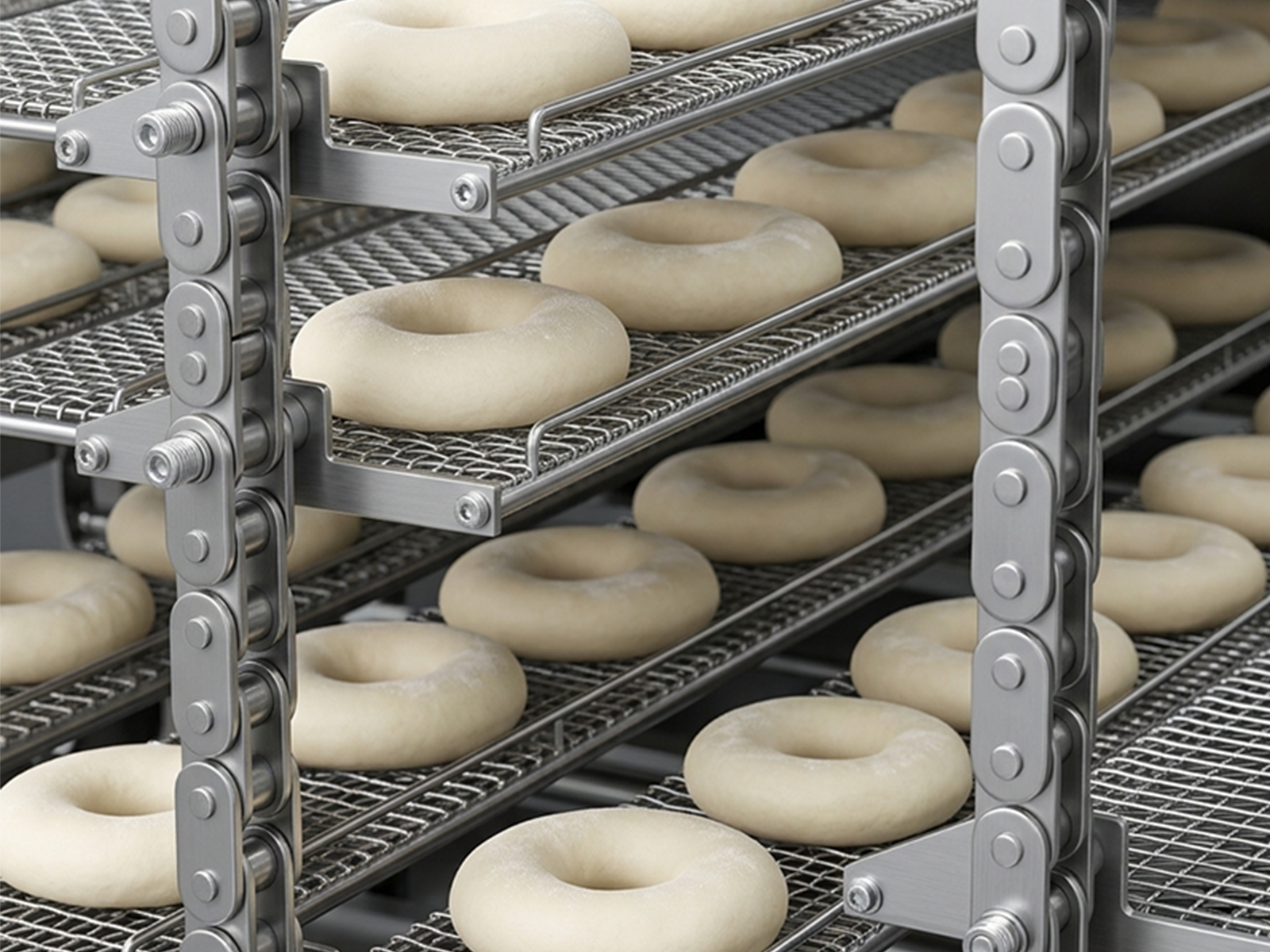

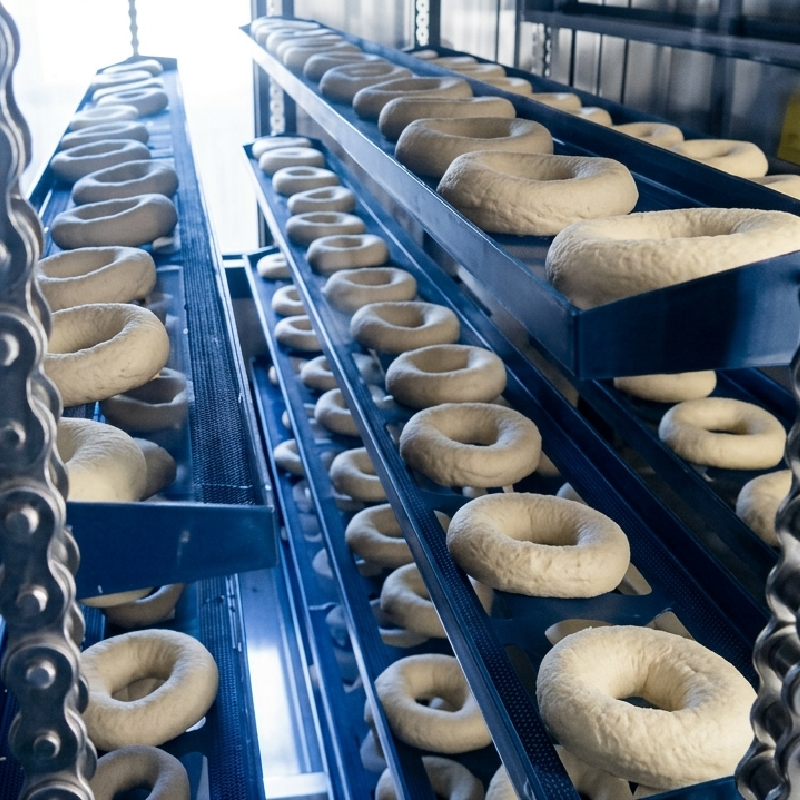

Proofer: By adjusting the humidity, temperature, and transfer time in the proofer, the donuts can be fermented well, producing round, beautiful, and delicious donuts.

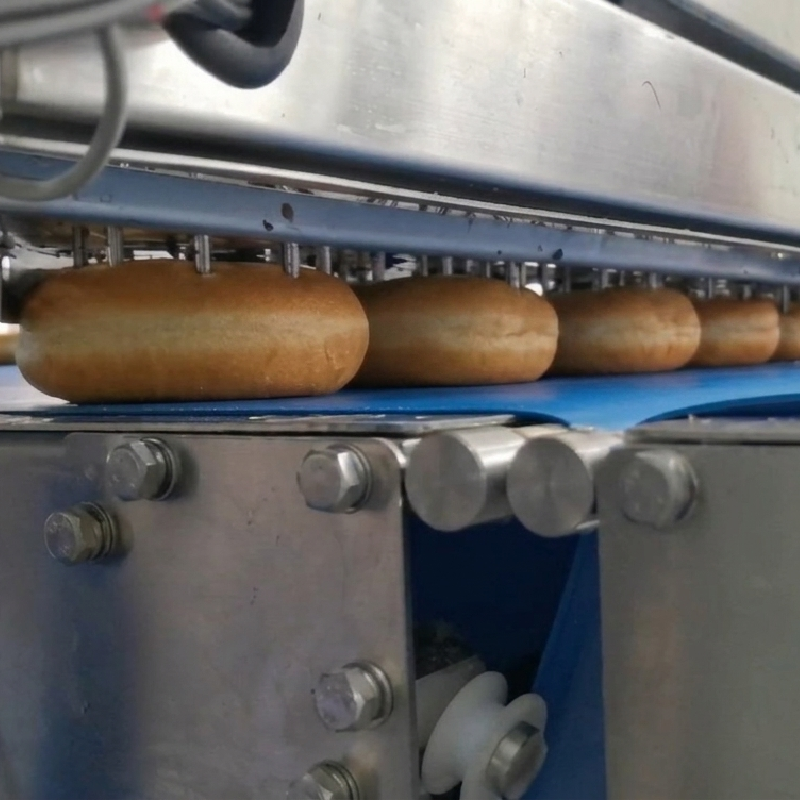

Injection: If you want to produce filled donuts, you can purchase a filling machine according to your needs to make the flavors and types of sweets more diverse.

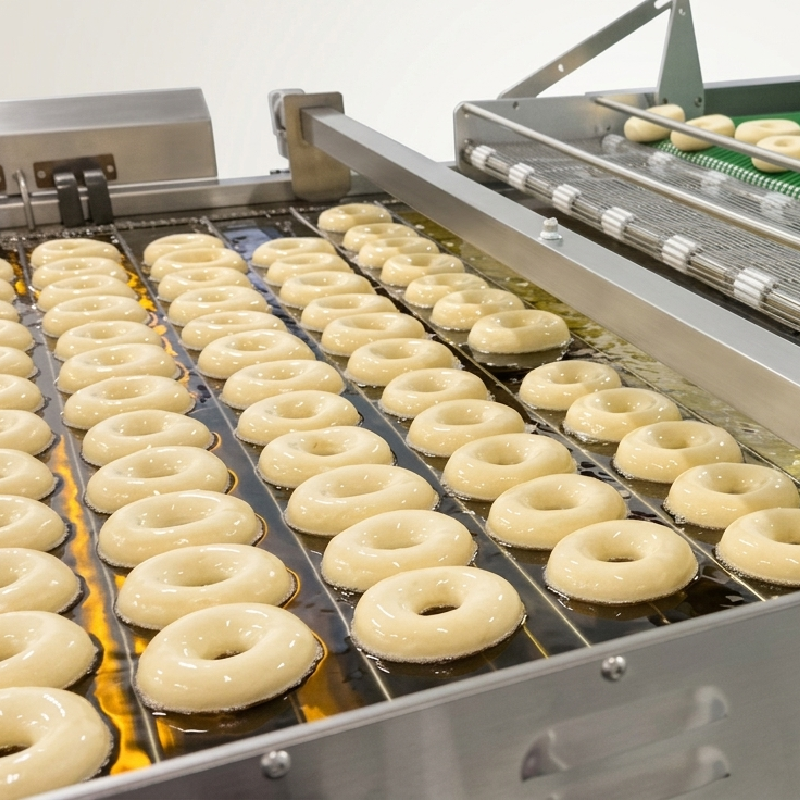

Fryer

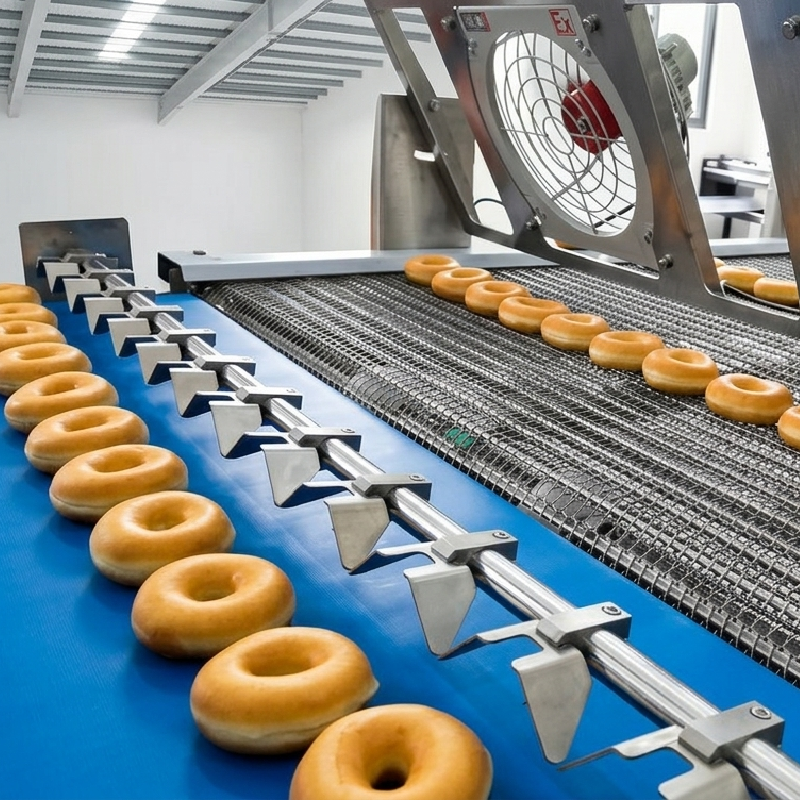

DPL Series have two types of fryer.One is gas and the other is electric models.The whole production line is equipped with micro computer temperature and frying time controller, variable speed conveyor belt drive, excellent material, minimum maintenance, plc control and energy efficient.
Provide related services
Technical support: We have a professional technical team to provide customers with remote technical support at any time to help solve problems in equipment operation, maintenance and troubleshooting.
On-site service: If necessary, we can arrange technicians to go to the customer's site for equipment installation and commissioning, maintenance and training services to ensure the normal operation of the equipment.
Spare parts supply: We provide original spare parts and related accessories supply services to ensure that customers can quickly obtain suitable parts during equipment maintenance and minimize equipment downtime.
