Forming Equipment
Extruder
Specification
| Model | Solution Series | Operating Method | Units per Row | Capacity | Voltage & Frequency | Power (kW) | Dimensions L×W×H (mm) | Length (mm) | Width (mm) | Height (mm) | Hopper Capacity (L) |

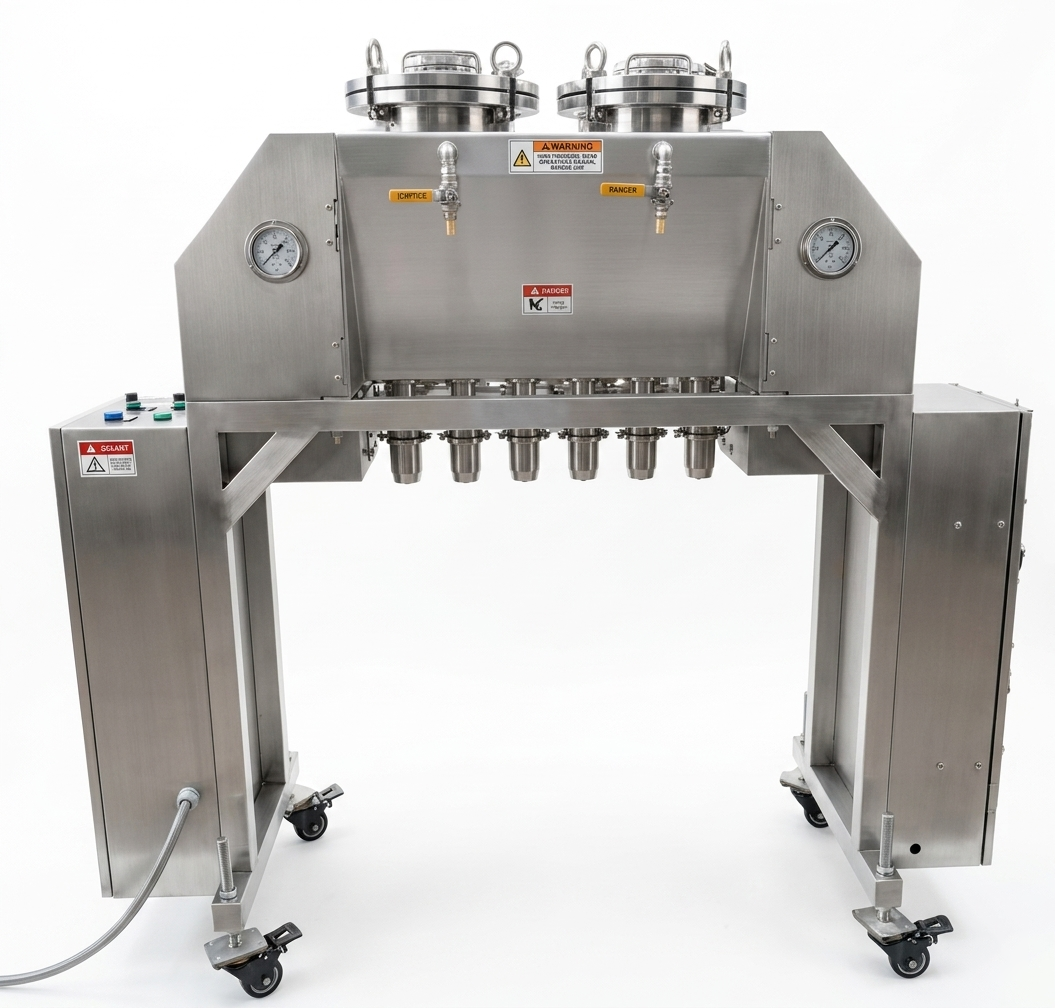

| Donut Former/ 6 | Donut Series | Pneumatic Driven | 6 | 1200-4800 pcs/h | 3Ph, 380V, 50Hz or Customized | 0.5 | 1650*665*1690 | 1650 | 665 | 1690 | Hopper Capacity: 53L |

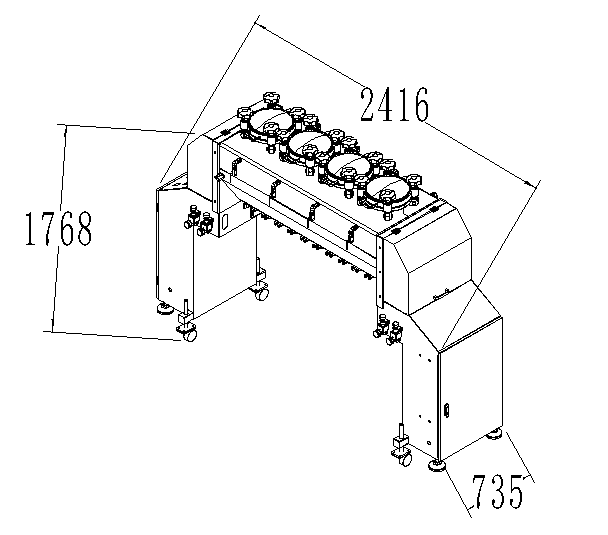

| Donut Former/ 12 | 12 | 4800-9600 pcs/h | 1 | 2416*735*1768 | 2416 | 735 | 1768 | Hopper Capacity: 135L |
Extruder

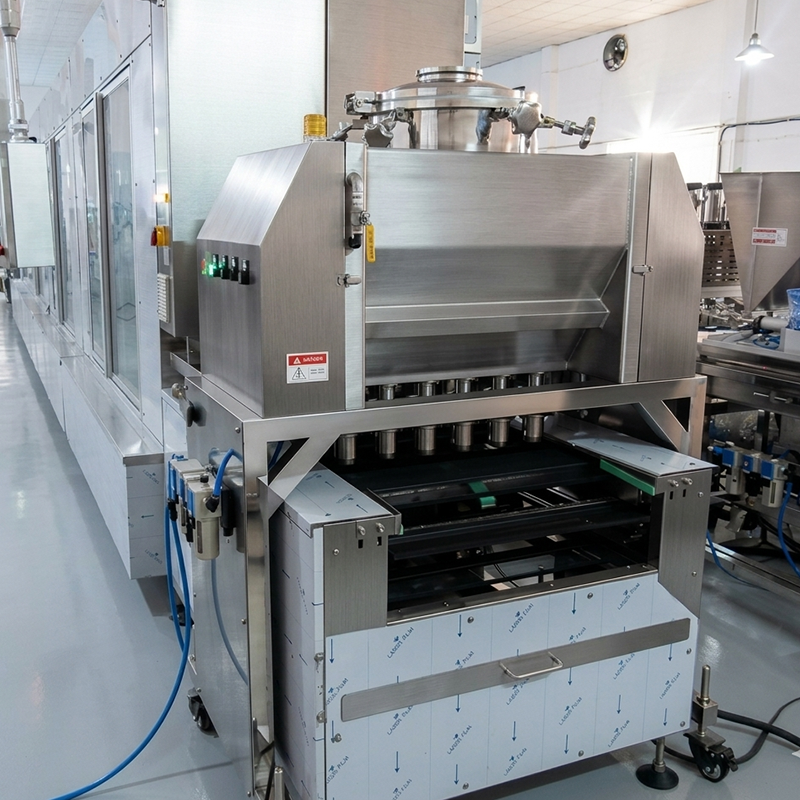

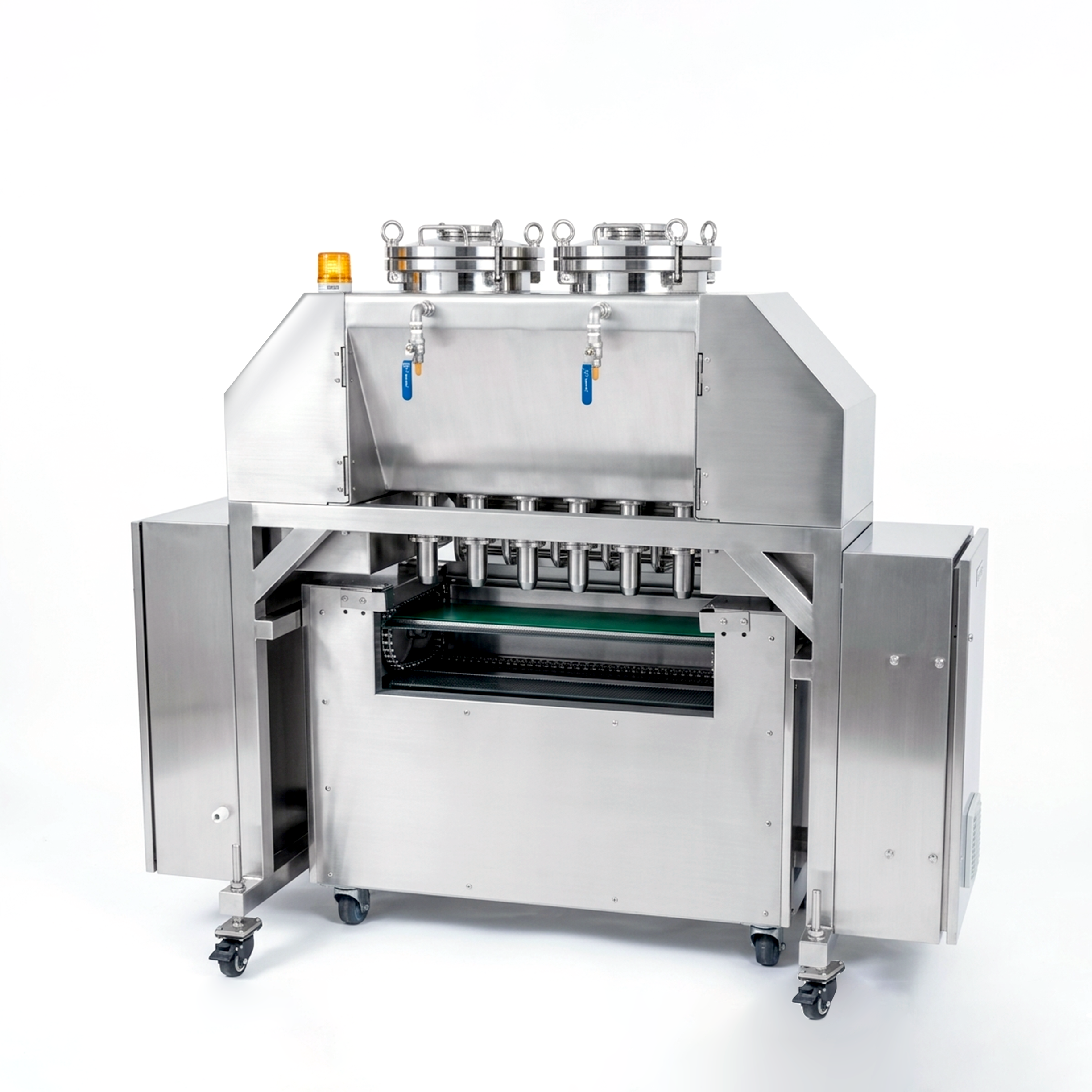

The Extruder Forming Machine is a key forming unit in automatic donut production lines, designed to precisely shape prepared dough into various donut profiles.

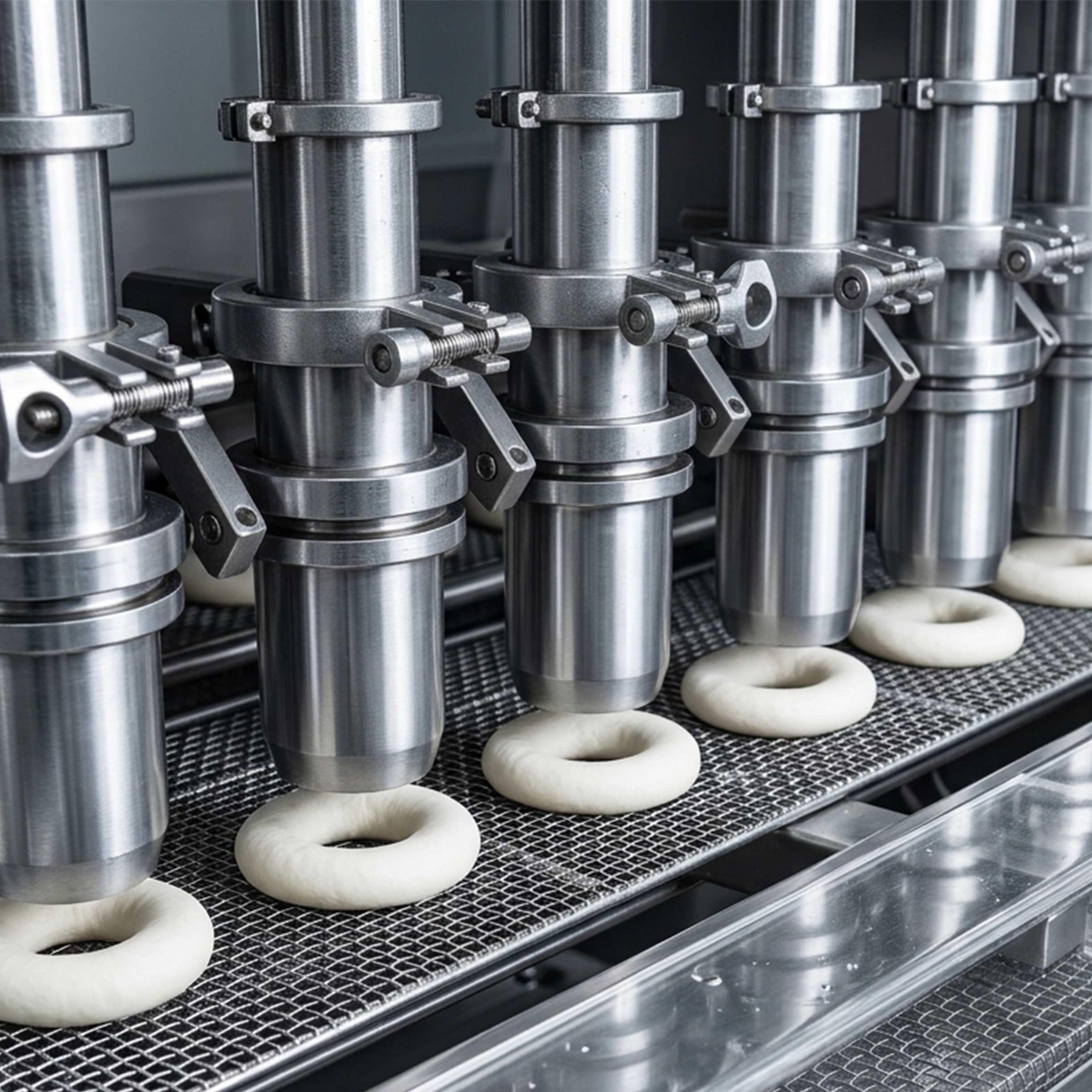

With controlled hopper pressure, the machine automatically extrudes, cuts, and deposits dough pieces onto proofing trays with high accuracy. Adjustable forming time and pressure settings ensure consistent product weight, stable shapes, and reliable production performance.

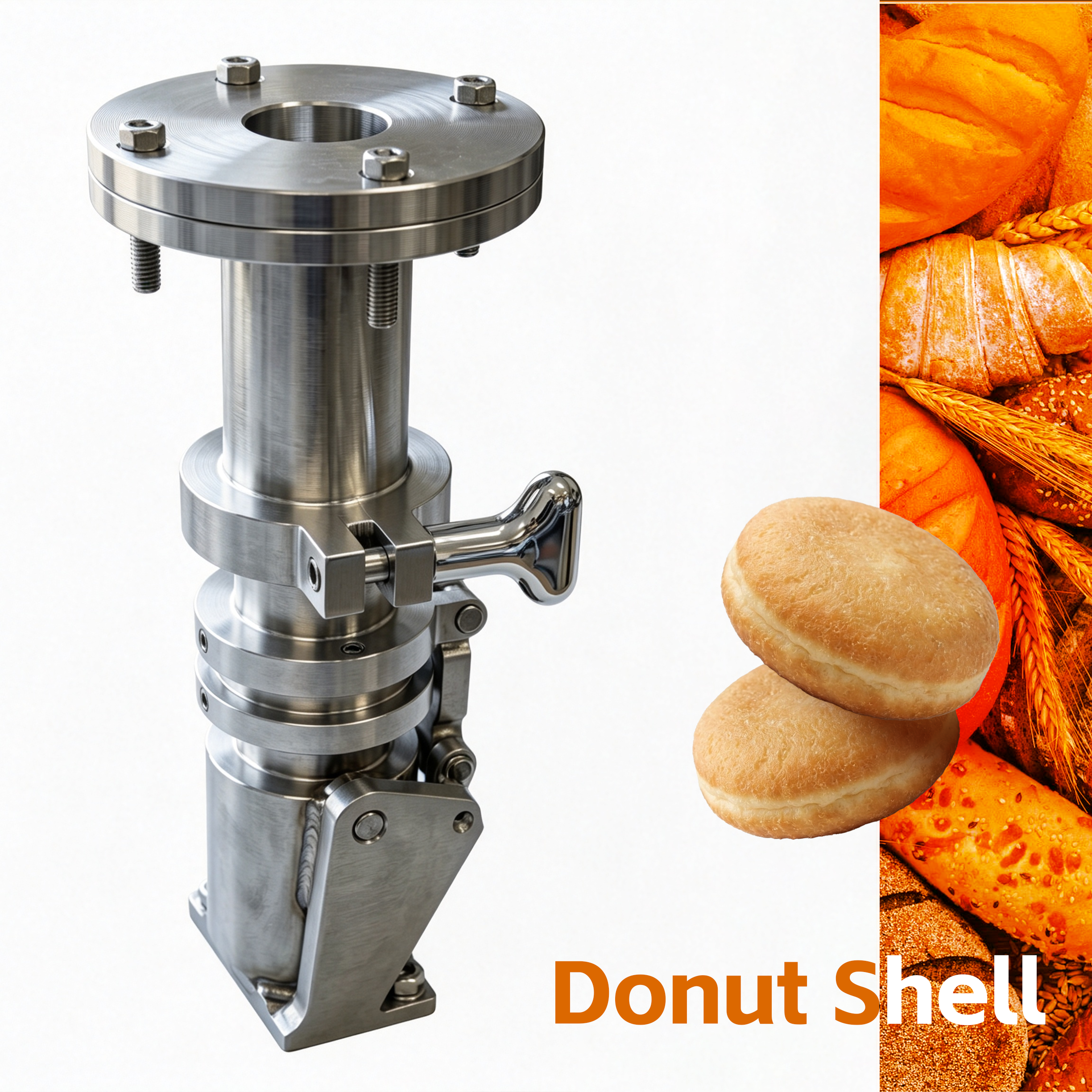

Supporting multiple donut formats including Donut Shell, Long John, and Donut Ball, the machine provides flexible forming solutions for diversified donut production requirements.
Key Features
- ● Multi-Product Forming Capability

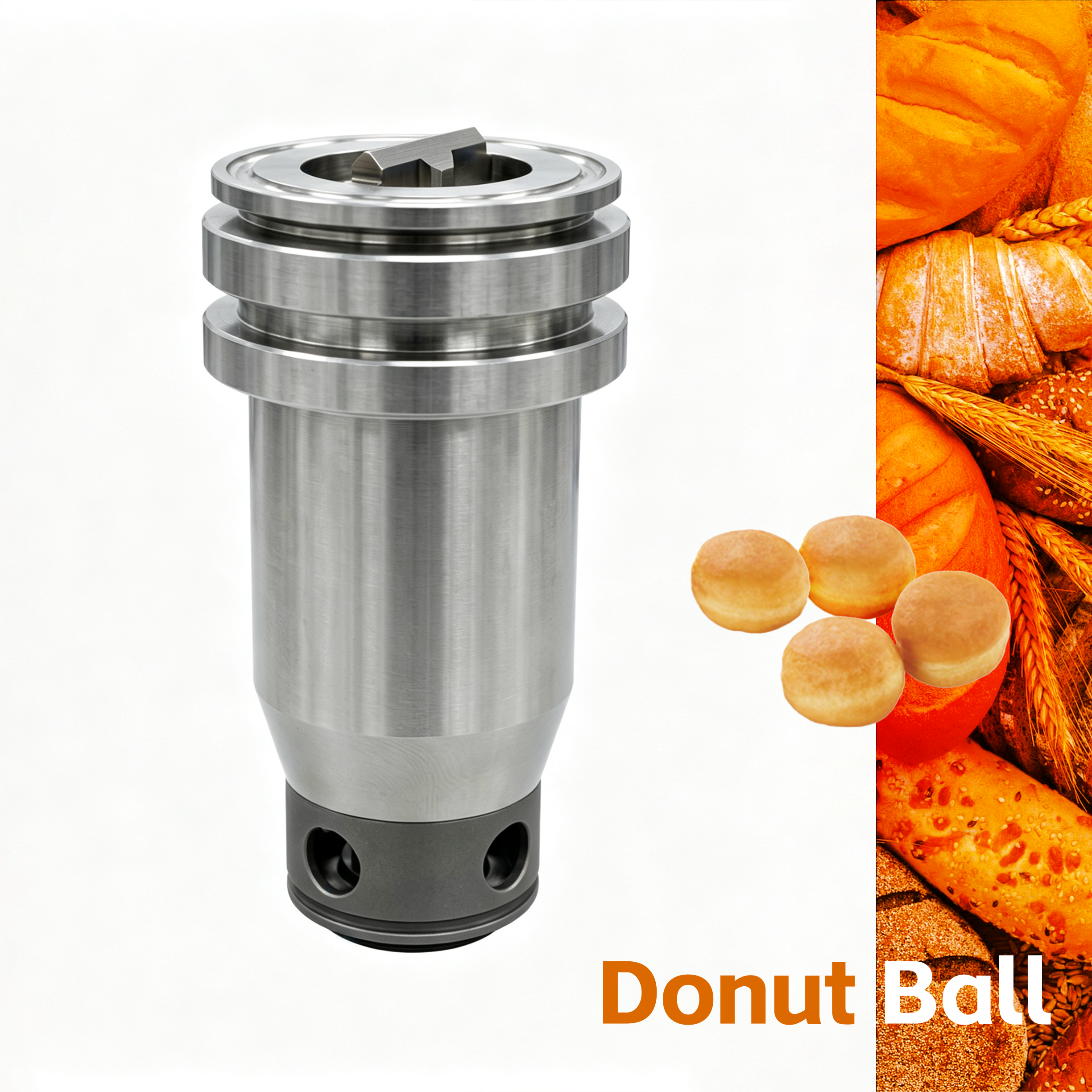

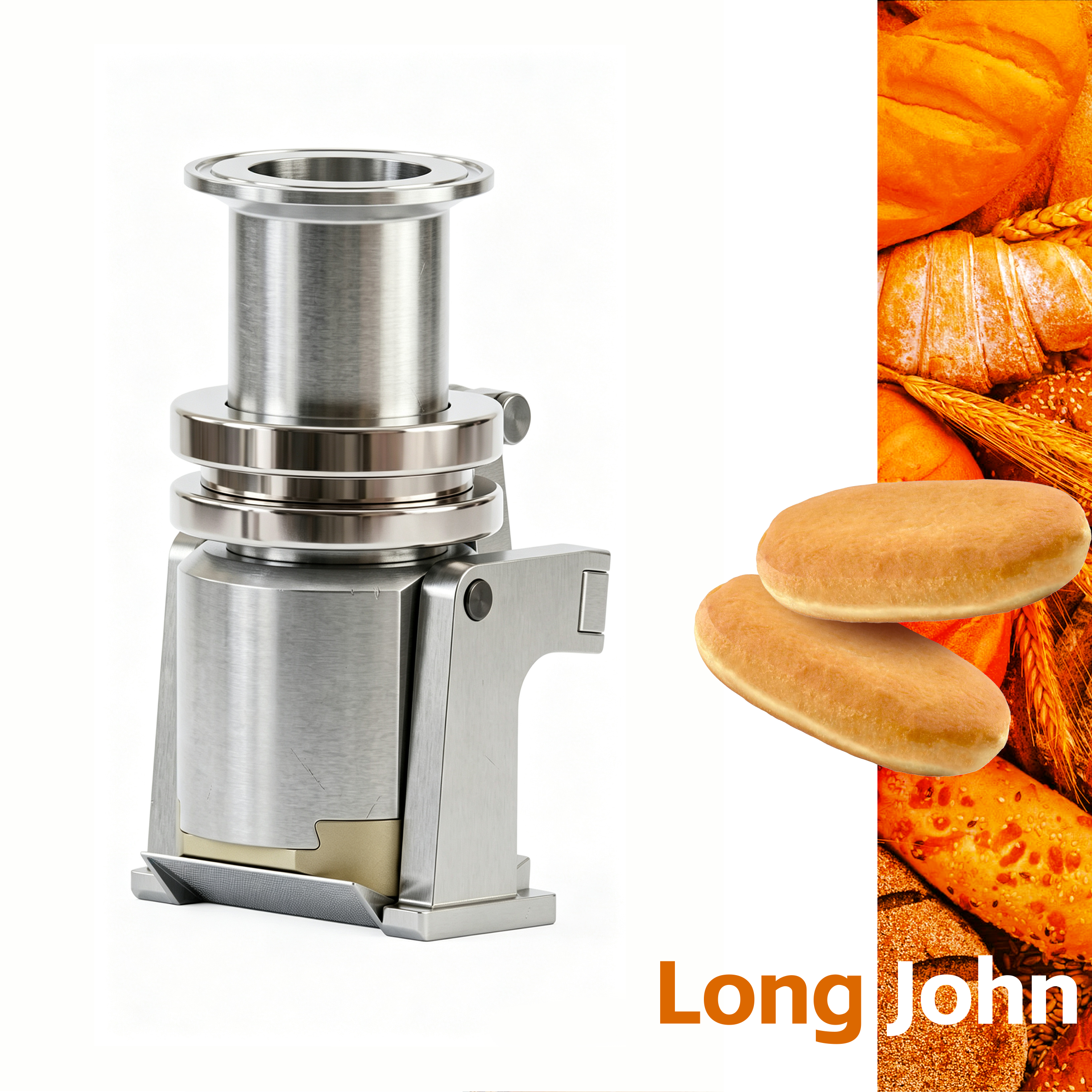

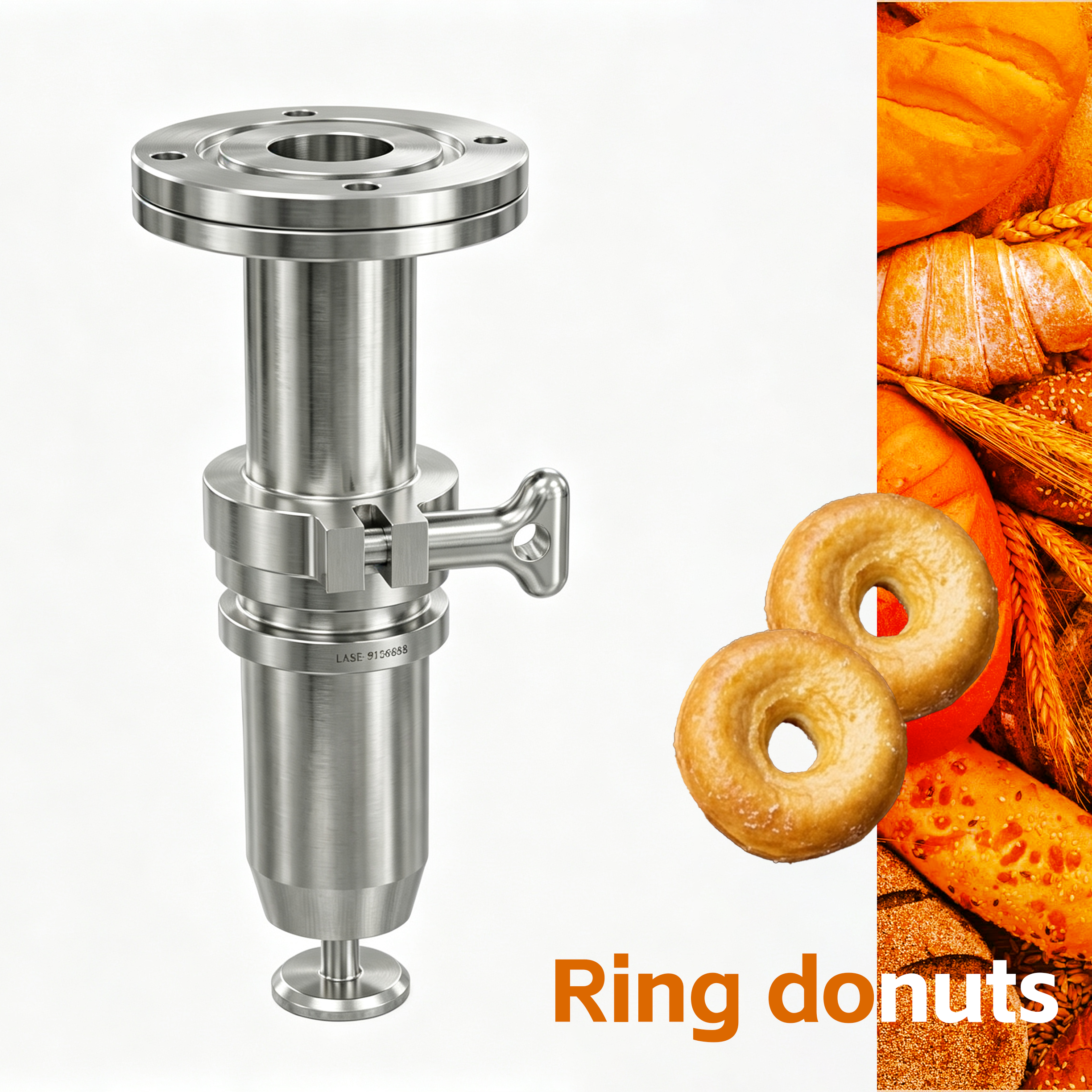

- Supports various donut shapes, including ring donuts, Long John donuts, and donut balls.
- ● Precise Dough Extrusion & Cutting
- Controlled pressure extrusion ensures accurate portioning and consistent product size.
- ● Adjustable Forming Parameters
- Forming pressure and time can be adjusted according to different dough formulas and product requirements.
- ● Stable & Continuous Production
- Designed for industrial-scale donut production with reliable performance and high forming consistency.
- ● Easy Integration into Automatic Lines
- Can be seamlessly connected with proofing, frying, coating, and packaging systems to build a complete automatic donut production solution.
Provide related services
Technical support: We have a professional technical team to provide customers with remote technical support at any time to help solve problems in equipment operation, maintenance and troubleshooting.
On-site service: If necessary, we can arrange technicians to go to the customer's site for equipment installation and commissioning, maintenance and training services to ensure the normal operation of the equipment.
Spare parts supply: We provide original spare parts and related accessories supply services to ensure that customers can quickly obtain suitable parts during equipment maintenance and minimize equipment downtime.
