CAF Series
01

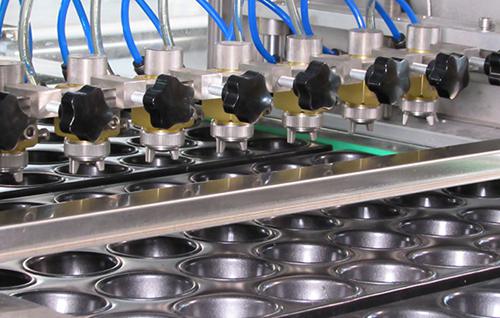

Caf-Oil Sprayer & Depositor 2 In 1 Machine
Specification
|
Running Speed |
15-25times/min |
|
Oil Spraying Quantity |
0.2-6g/time |
|
Dough Depositing Quantity |
10-100g time,adjustable |
|
Voltage and Frequency |
3ph,380V,50Hz |
|
Power |
5.5kW |
|
Air Pressure |
0.6-0.8MPa |
|
Maximum Air Consumption |
1m³/min(external gas source) |
|
Dimension(L*W*H) |
3500*1050*1650mm |
Lubrication and Maintenance
Strict regulations for operation and maintenance are an important guarantee for normal functioning of the machine and prolonging its service life.
supplement with it in time to a certain amount.
2.Regularly grease the conveyor chains with a little lubricating oil. Grease sliding parts such as the guide rod and the guide sleeve with cooking oil before work so as to ensure their smooth functioning.
3.Grease the double-body pressure regulating valve with oil and exhaust water in time so as to ensure the normal functioning of pneumatic components.
4.In order to ensure food hygiene, the machine must be washed and wiped clean before and after use. Do not use metal and thread tools that are prone to be unstitched to clean in case the valve core gets stuck.
5.Regularly check the fastening bolts of the cam control device to see whether they are loose.
6.Regularly check whether the sealing washer of the piston inside the ration pump is damaged or worn. If so, replace them in time.
